Areas of Circle, Segments, and Sectors - Lesson 11-6

Today we started by remembering the formula for the area of a circle:

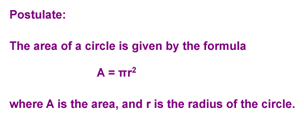

Area of a Circle

We practiced this by applying it to a couple of problems (these should all be pretty straight forward for you to solve):

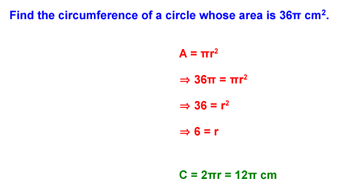

Circle Area Example 1

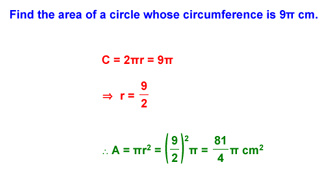

Circle Area Example 2

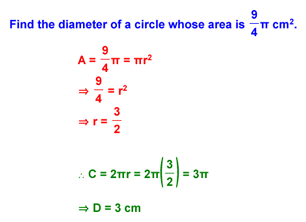

Circle Areas Example 3

Circle Area Example 4

At this point we need to define some new areas that are associated with circles.

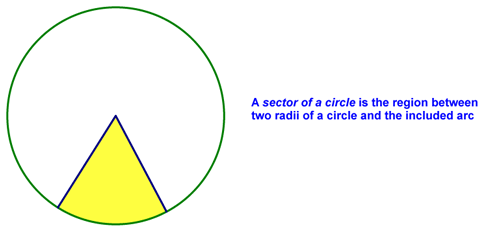

Definition of Sector

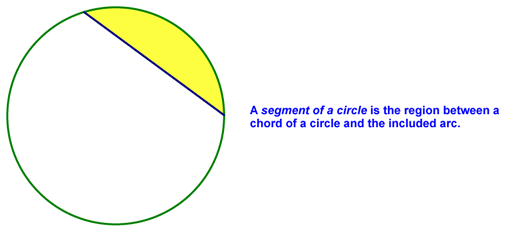

Definition of Segment

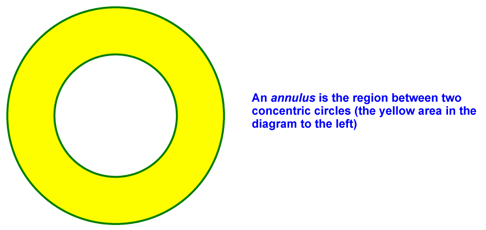

Definition of Annulus

For each of these, a different technique is used to find its area:

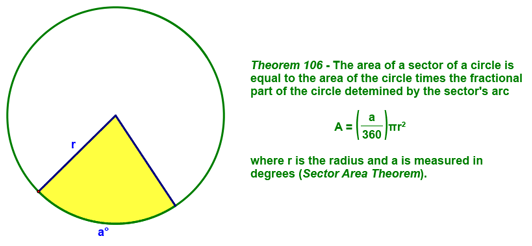

Theorem 106 - The area of a sector

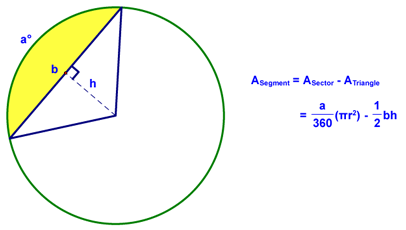

Area of a Segment

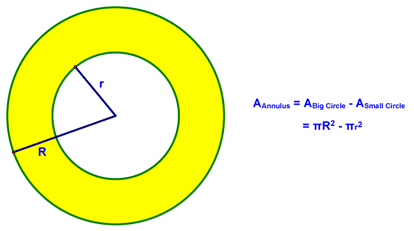

Area of an Annulus

Here are some examples using the information in today's lesson:

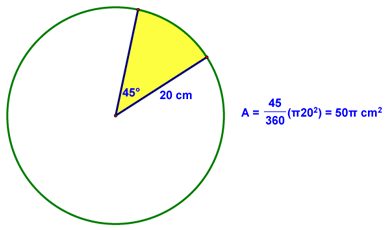

Sector Area Example 1

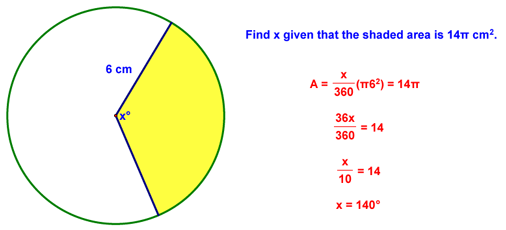

Sector Area Example 2

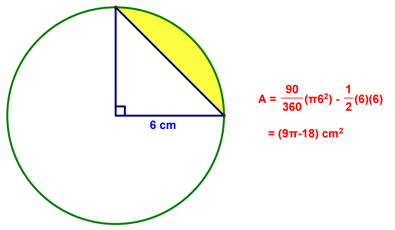

Segment Area Example
