Four Sided Polygons - Lesson 5-4
Today, we defined a whole bunch of stuff. We started with polygons and things related to them:
![Definition of a Polygon](polygonDefinition.gif)
We then discussed diagonals of polygons and how these can be used to define convex and concave polygons:

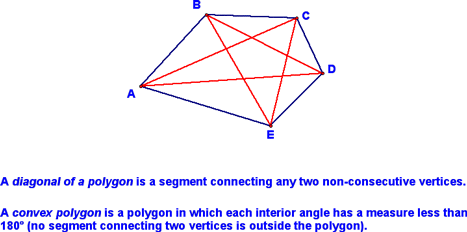

![Definition of a Polygon and Convex](diagonalDefinition.gif)

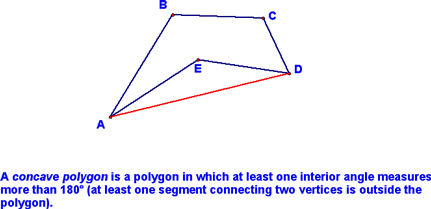

![Definition of Concave Polygon](concaveDefinition.gif)
We then talked about how we name polygons...essentially, you pick any vertex and name all the vertices in order from there in either direction. Just make sure to use all the vertices and don't mess up the order, and you'll be all set!
![Naming a Polygon](polygonNaming.gif)
We then move on to define a bunch of special parallelograms...make sure you know these definitions, as we'll be going through a number of properties for each of these and you'll have to know when something is due to the definition vs. being due to a property!

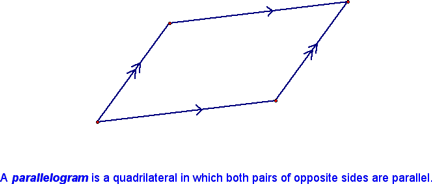

![Definition of a Parallelogram](parallelogramDefinition.gif)
![Definition of a Rhombus](rhombusDefinition.gif)

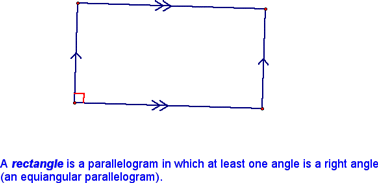

![Definition of a Rectangle](rectangleDefinition.gif)

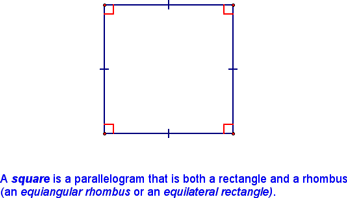

![Definition of a Square](squareDefinition.gif)

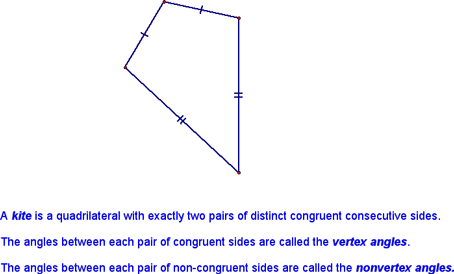

![Definition of a Kite](kiteDefinition.gif)

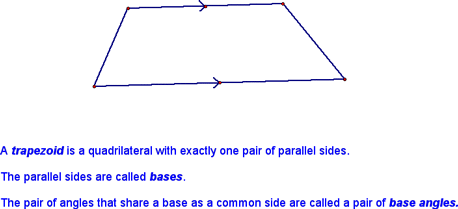

![Definition of a Trapezoid](trapezoidDefinition.gif)

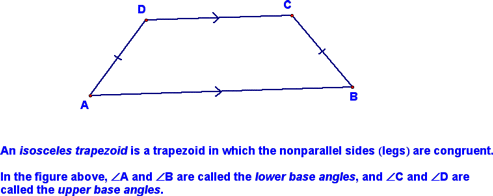

![Definition of an Isosceles Trapezoid](isosTrapezoidDefinition.gif)
|
