Proving that Lines are Parallel - Lesson 5-2

Today, we covered a number of theorems regarding how to prove that lines are parallel. In order to prove these, we started by explaining what an exterior angle was:

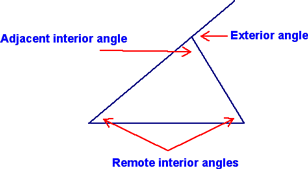

Exterior Angle

You should be able to recognize that there are 6 exterior angles for every triangle. We then covered a number of theorems that can be proved based on the first (#30). The proof for Theorem 30 and the others, which follow directly from that, are in the sure that they make sense to you!!

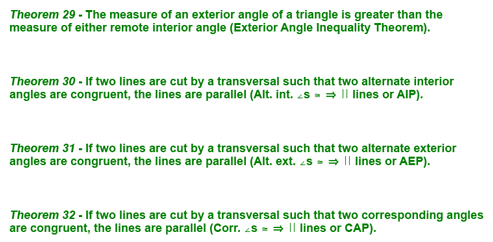

Theorems 29 - 32

We did prove one of these in class...Theorem 31. The others are very similar.

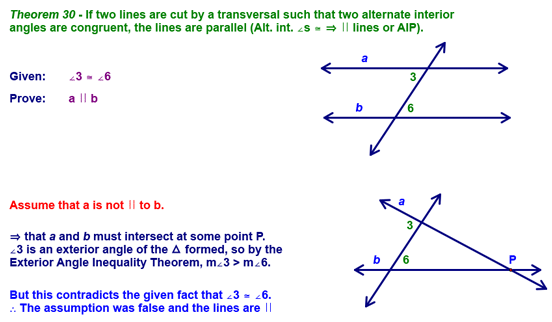

AIP Proof


You should be able to see how you could prove AEP & CAP by a similar method.

At this point, we covered a number of other theorems:

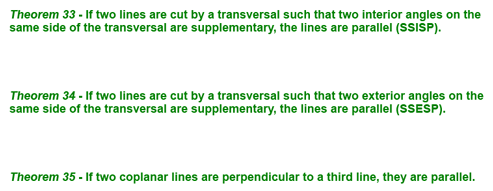

Theorems 33 - 35

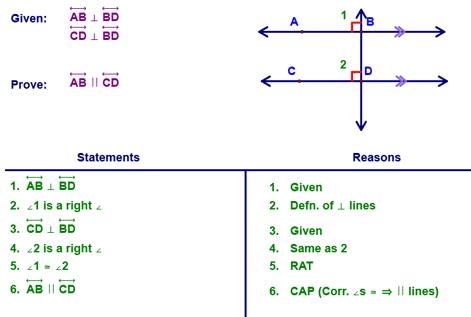

And wrapped up by doing an example (which is the proof for Theorem 35):

Example using CAP
