Introduction to Parallel Lines - Lesson 4.5
We started today by defining the following:
![Definition of a Plane](planeDefinition.gif)

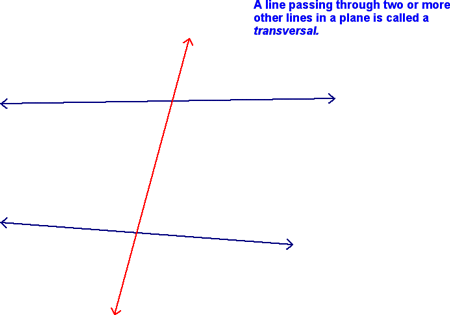

After that we defined a transversal:
![Definition of a Transversal](transversalDefinition.gif)

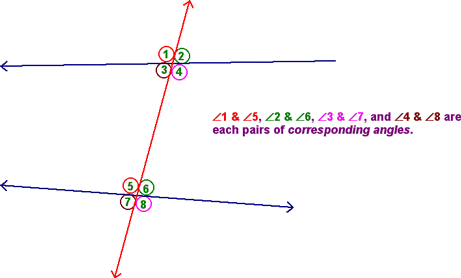

Then, we defined corresponding angles,
![Corresponding Angles](correspondingAngles.gif)

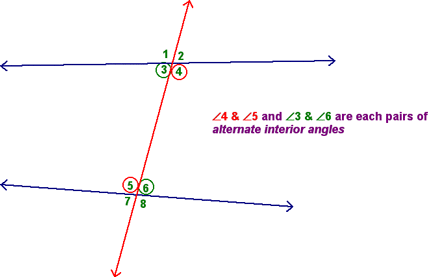

alternate interior angles,
![Alternate Interior Angles](alternateInteriorAngles.gif)

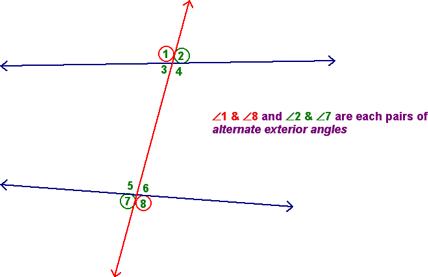

and alternate exterior angles.
![Alternate Exterior Angles](alternateExteriorAngles.gif)
You should also know how to recognize same side interior angles and same side exterior angles.

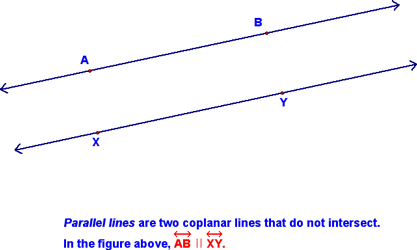

We finished by defining parallel lines. Note that parallel lines are different from skew lines, which are to non-coplanar lines that do not intersect.
![Definition of Parallel Lines](parallelLines.gif)
|
